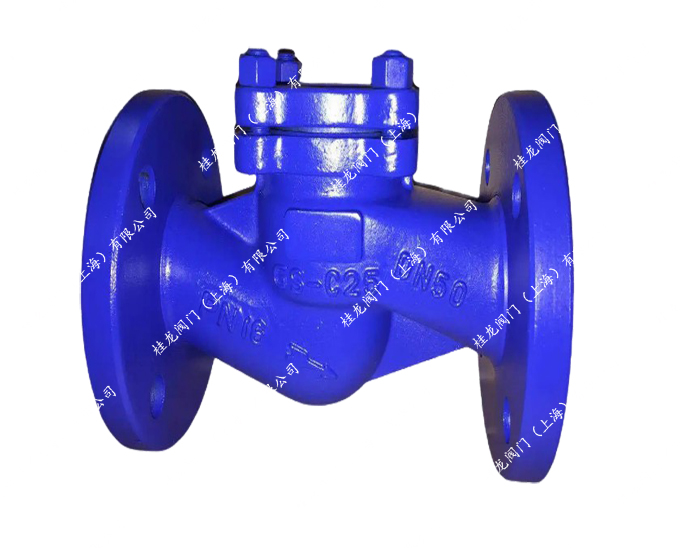

DIN3202 F1 Lift Check Valves
|
Components
|
|
1
|
Body
|
Cast iron/ductile iron
|
|
2
|
Bonnet
|
stainless steel
|
|
3
|
Disc
|
Cast iron/ductile iron
|
|
4
|
BONNET
|
Cast iron/ductile iron
|
|
Application
|
|
Face to face is according to DIN3202-F1
|
|
Flange drilled is according to DIN2532/2533
|
|
Test
|
|
Working pressure
|
PN10
|
PN16
|
|
Shell pressure
|
15bars
|
24bars
|
|
Seat pressure
|
11bars
|
17.6bars
|
|
Dimensions
|
Unit:mm
|
|
Size(Inch)
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L
|
200
|
230
|
290
|
310
|
350
|
400
|
480
|
600
|
730
|
850
|
|
H
|
95
|
100
|
115
|
135
|
145
|
160
|
180
|
270
|
320
|
350
|
|
Working Pressure:PN10
|
|
Dia.of flange
|
150
|
165
|
185
|
200
|
220
|
250
|
285
|
340
|
395
|
445
|
|
Nos.of hole
|
4
|
4
|
4
|
`8
|
8
|
8
|
8
|
8
|
12
|
12
|
|
Dia.of hole
|
18
|
18
|
18
|
18
|
18
|
18
|
23
|
23
|
23
|
23
|
|
P.C.D
|
110
|
125
|
145
|
160
|
180
|
210
|
240
|
295
|
350
|
400
|
|
K
|
88
|
102
|
122
|
138
|
158
|
188
|
212
|
268
|
320
|
370
|
|
Working Pressure:PN16
|
|
Dia.of flange
|
150
|
165
|
|
|
 |
|
